ARBUCA0001

$606.00

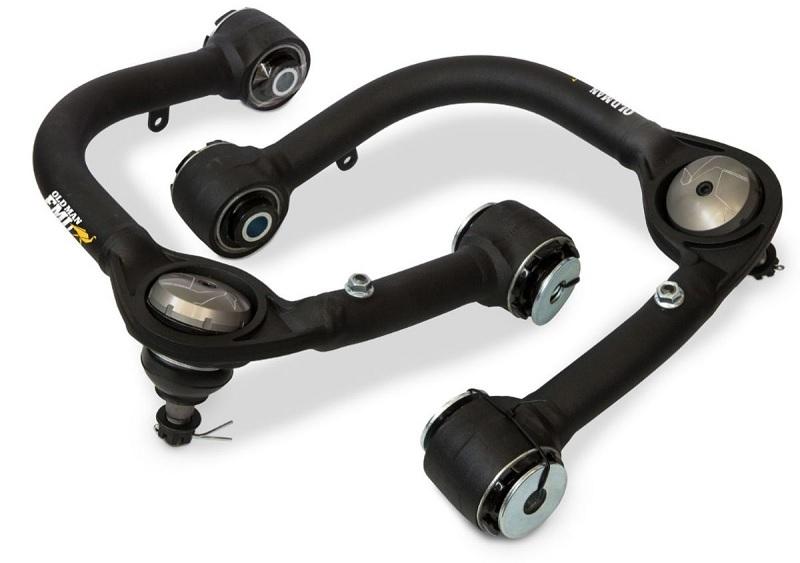

UPPER CONTROL ARM 200 SERIES
Add to Cart
Product Details
When an Independent Front Suspension (IFS) vehicle is fitted with a suspension lift, the caster and camber can be pushed outside the factory specifications. IFS vehicles generally have a few degrees of adjustment in their camber and caster from the factory. Adding Old Man Emu upper control arms brings the alignment cams back into an acceptable range for both caster and camber.

Please note, after fitment of Old Man Emu Upper Control Arms, a wheel alignment is required. If the vehicle is fitted with aftermarket tires/wheels, fender clearance should be checked. Additional caster may be required if the tires/wheels do not clear. Wheel alignment information is included in the fitting instructions.

The OME Upper Control Arm will provide an increase between +2.5 and +3.5 degrees of caster and up to 1.5 degrees of negative camber increase (figures based off an approximate 50mm or 2in lift).

SPECIFICATIONS

ARB 4x4 Accessories | Part Number: ARBUCA0001

Fitment:Direct Fit

Forged ball joint housing

Forged eyelets

Heavy duty greasable ball joint

OME ball joint protective cap

GIIRO bushings, free pivoting, grease free and maintenance free

Increased camber/caster for 2" lift

Mount provision for OE ABS wires

ARB's Integrit powder coat finish

Boxed in pairs with foam inserts

Fitting instructions included

OME branded outer sleeve

Tested and passed to meet VSB14 requirements

Includes upper control arms
