NW12VPRO18500
Non-returnable
$1,381.12
Winch Pro Series 18500 Rated Line Pull 18500 lbs (single line DC 12V 5.9hp Wire rope: 1/2" x 82'
Product Details

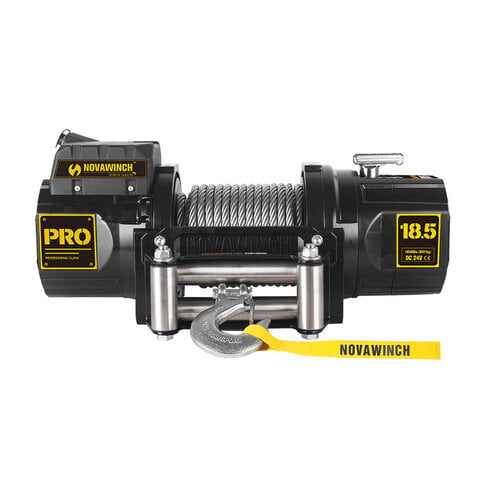

NOVAWINCH Pro 18500 Wire Cable 12v
Meet the next generation in heavy-duty winching. The Pro Series advances what you can expect from an electric winch. From longer run time (up to 4 minutes at FULL load!) to lower amps, this is a serious winch for serious work. Meets SAE J706 standards.
Five things to know about this winch:
It's Professional Grade. Our heavy-duty contactor keeps electric operations in excess of military requirements.
Overbuilt Drum: large diameter drum extends the life of rope/cable.
IP68 rated keeps elements out and winch running.
Smart brake: innovative “Double-lock” 100% load-holding brake design provides zero drag on cable in. Located inside the gearbox away from the drum to eliminate heat transfer to the synthetic rope.
Made to last: stainless steel hardware.
Specifications
Rated Line Pull: 18500 lbs (8391kgs) single line
Motor(Series wound): DC 24V: 5.9hp/4.5kW
Gear Box: 2-Stage Planetary/2-Stage Spur Gear
Gear: Ratio505:1
Clutch: Pull and Turn
Braking Action: Mechanical, Automatic, 100% Load Holding
Fairlead: Stainless Steel 4 Way Roller Fairlead
Wire Rope: 1/2″×82′(13mm×25m)
Remote: 12' Rubberized Controller
Dimensions: 27.76″×10.5″×12.5″(705mm×266mm×318mm)
Mounting Bolt Pattern: 10"x6.5"(254mmx165.1mm)
Weight: 181lbs(82kgs)
